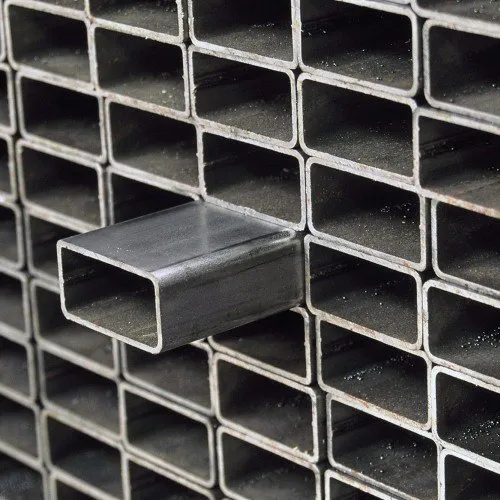

Weight Cart of Rectangle Pipe
| OD (MM) | OD (MM) | Weight in Kgs per length (20 feet / 6.1 mtrs) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.8MM | 0.9MM | 1MM | 1.2MM | 1.5MM | 2MM | 2.5MM | 3MM | 4MM | 5MM | 6MM | ||
| 30 | 10 | 2.98 | 3.33 | 3.73 | 4.43 | 5.48 | 7.15 | 8.75 | – | – | – | – |
| 40 | 10 | 3.74 | 4.80 | 4.70 | 5.60 | 6.93 | 9.09 | 11.17 | – | – | – | – |
| 40 | 20 | 4.51 | 5.06 | 5.67 | 6.76 | 8.39 | 11.03 | 13.60 | – | – | – | – |
| 50 | 10 | 4.51 | 5.06 | 5.67 | 6.76 | 8.39 | 11.03 | 13.60 | – | – | – | – |
| 50 | 25 | – | – | 7.27 | 8.69 | 10.79 | 14.24 | 17.60 | 20.89 | – | – | – |
| 60 | 40 | – | – | – | 11.42 | 14.21 | 18.79 | 23.30 | 27.72 | 35.99 | 44.23 | 52.16 |
| 75 | 25 | – | – | – | 11.42 | 14.21 | 18.79 | 23.30 | 27.72 | 35.99 | 44.23 | 52.16 |
| 80 | 40 | – | – | – | 13.61 | 17.12 | 22.67 | 28.15 | 33.54 | 43.67 | 53.83 | 63.69 |
| 100 | 50 | – | – | – | 17.06 | 21.58 | 28.47 | 35.21 | 41.79 | 55.18 | 68.22 | 80.96 |
| 120 | 60 | – | – | – | – | – | – | – | 50.49 | 66.71 | 82.63 | 98.25 |
| 150 | 50 | – | – | – | – | – | – | – | 55.45 | 71.97 | 88.45 | 104.33 |
| 150 | 75 | – | – | – | – | – | – | – | 63.44 | 83.98 | 104.22 | 124.16 |
| 150 | 100 | – | – | – | – | – | – | – | 70.64 | 93.58 | 116.22 | 138.56 |
| 200 | 100 | – | – | – | – | – | – | – | 83.57 | 110.36 | 136.44 | 161.91 |
| 200 | 150 | – | – | – | – | – | – | – | 99.44 | 131.98 | 164.22 | 196.15 |
